Model No.: X-RAY
Brand: PROVIB
Applicable Industry: Building Material Shops, Machinery Repair Shops, Home Use, Construction Works, Other
Out-of-warranty Service: Video Technical Support, Online Support, Spare Parts
Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, None
Showroom Location (in Which Countries Are There Sample Rooms Overseas): None
Video Factory Inspection: Provided
Mechanical Test Report: Provided
Marketing Type: New Product 2020
Core Component Warranty Period: 1 Year
Core Components: Motor
Old And New: New
Place Of Origin: China
Types Of: Internal
Drive Way: Electric Vibrator
Warranty Period: 1 Year
Unique Selling Point: Long Lifetime
Name: Concrete Vibrator
Color: yellow,blue,etc
Coupling: screw,pin type
Packaging: carton box, 1pcs/ctn
Productivity: 1000PCS ONE MONTH
Transportation: Ocean,Land,Air,Express
Place of Origin: CHINA
Supply Ability: 1000sets one month
Certificate: CE
HS Code: 8467299000
Port: Ningbo ,Shanghai,Qindao
Payment Type: L/C,T/T,Western Union
Incoterm: FOB,CFR,CIF,EXW,FAS,FCA,CPT,CIP,DEQ,DDP,DDU,Express Delivery,DAF,DES
Product Description

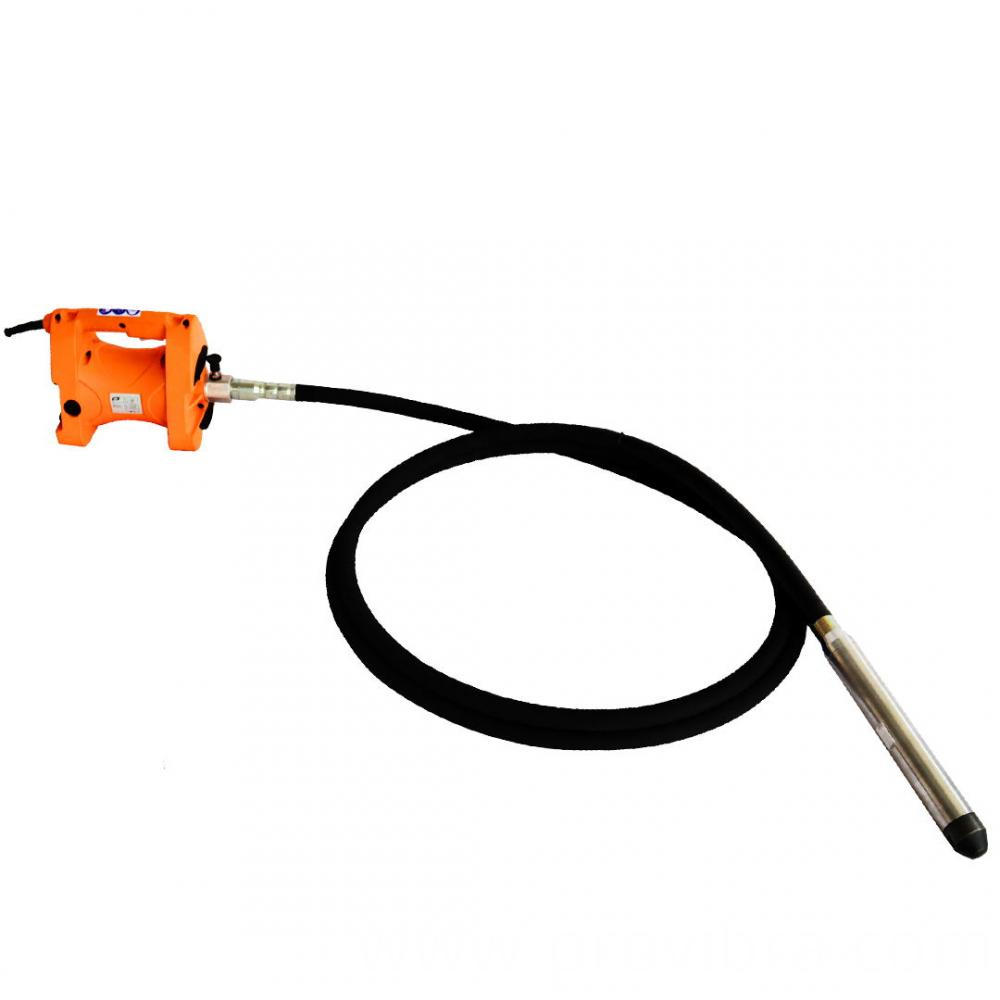

PIN Type backpack Electric Concrete Vibrator motor ,is an universal motor for driving an eccentric system of Concrete Vibrator poker. With strong housing, qualified rotor&stator,high level of carbon brush,it provides both superior dynamic to the flexible shaft&poker,and also reliable performance and long lifetime.

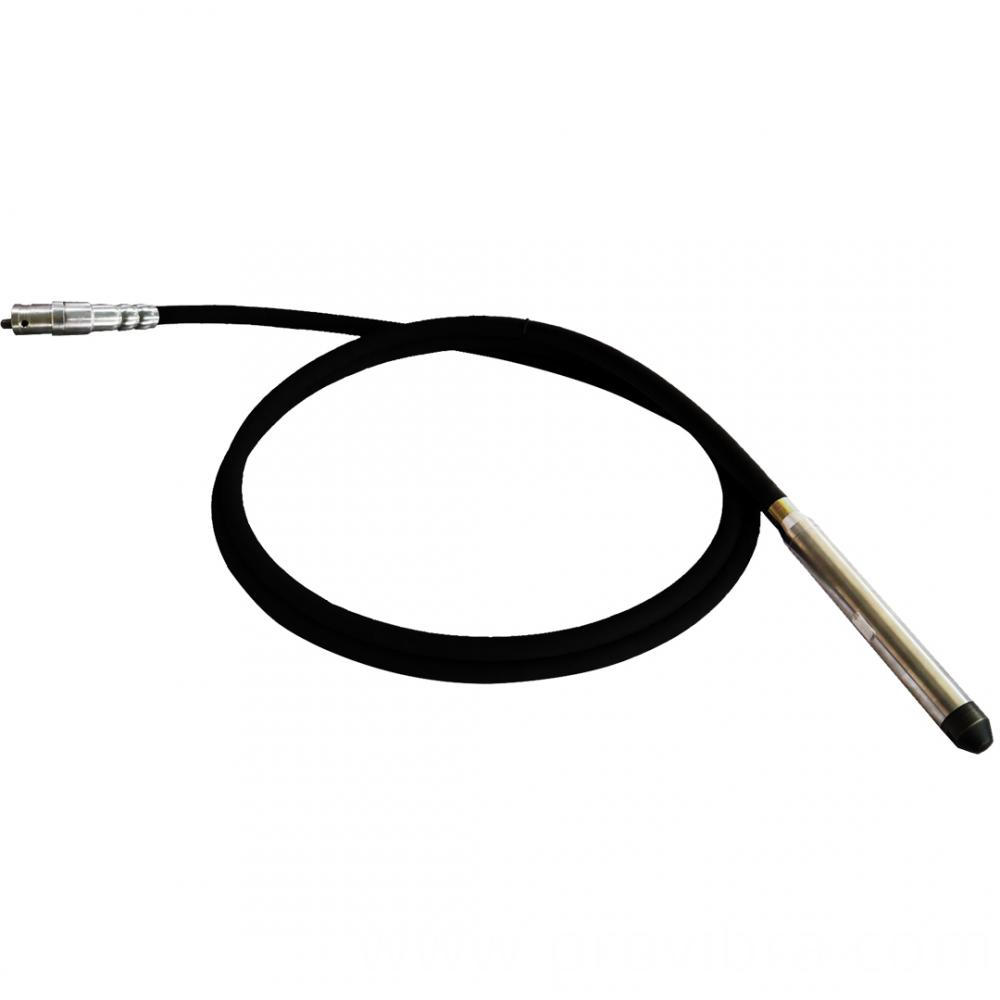

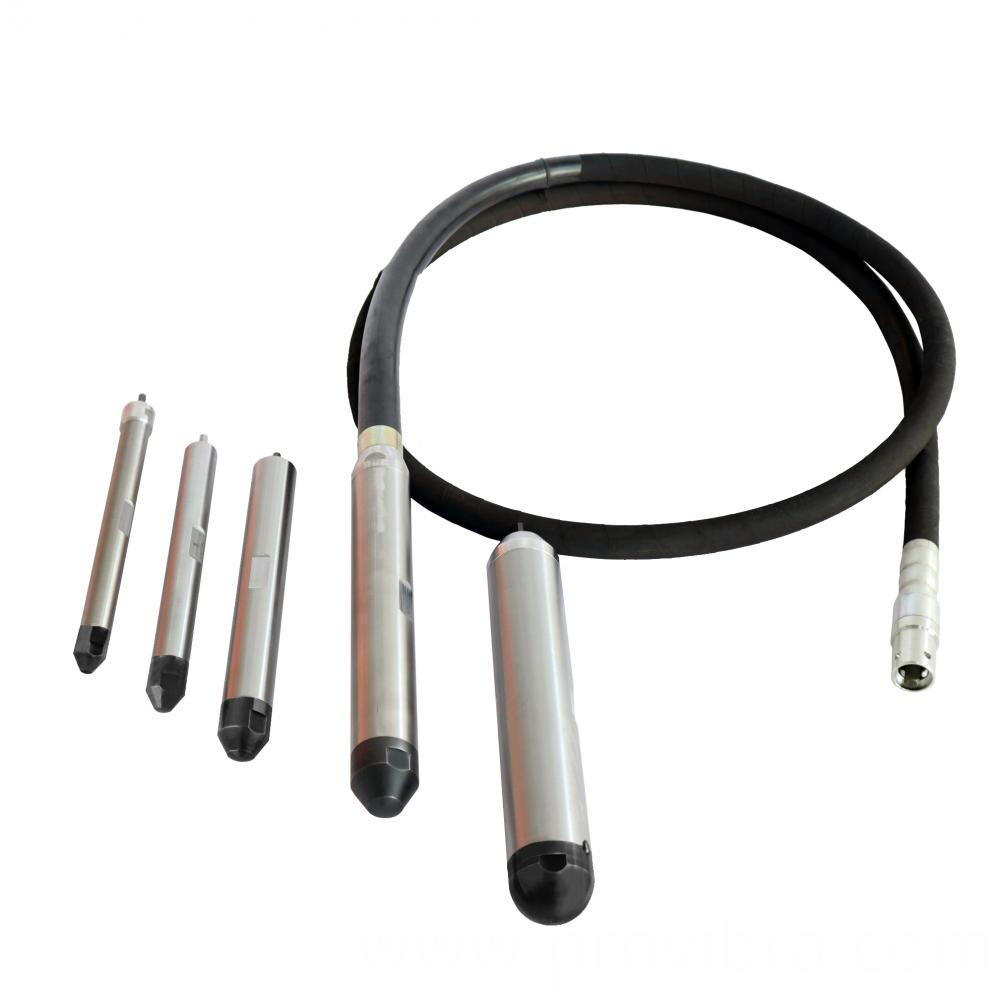

The eccentric poker is made by qualified rubber hose with vulcanization protection and high speed inner core,that provides both flexibility and resistance to wear.The outer casing rubber hose is with abrasive rubber,double layer of meshing wire,and high quality spring steel as the lining.The inner core is made by high carbon steel wire that is suitable for high speed working condition.
Features
8- High frequency of vibration on poker head
Technical Data Of Motor
Modle Voltage Power Frequency NO-Load Speed Weight Packing Size X-RAY 230V/115V 2.3KW( 3hp) 50/60HZ 17,500RPM 5.5KG 358X200X240mm
Technical Data Of Poker
Model diameter of vibrating head diameter of rubber hose diameter of flexible shaft length vibrating frequency weight 4M EP40 40mm 27mm 9mm 1-6m 200HZ 13KG EP48 48mm 27mm 9mm 1-6m 200HZ 14KG EP58 58mm 27mm 9mm 1-6m 200HZ 16KG
Product Photo
Product Categories : Concrete Vibrator > High Frequency Concrete Vibrator
